Kennametal

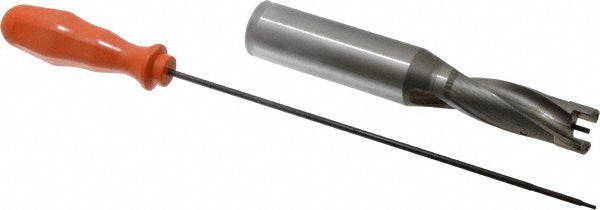

Indexable Drilling - Kennametal 2238542
MFR# 2238542Series KSEM
$471.20List $514.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238542 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0781
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.0900
Insert seat size2
Maximum drill depth2.3400
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7874
Minimum drill diameter0.7811
Overall length6.25
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
