Kennametal

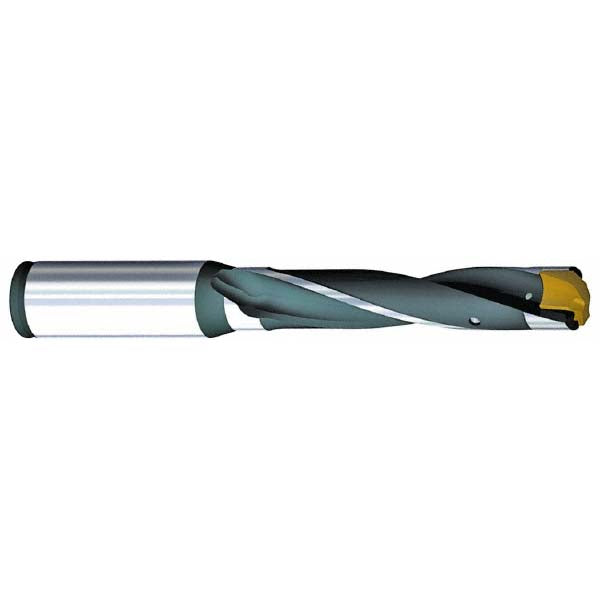

Indexable Drilling - Kennametal 2238562
MFR# 2238562Series KSEM
$631.95List $690.43
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238562 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM1109
Coolant hole diameter0.1969
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.4700
Insert seat size7
Maximum drill depth3.3300
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.1287
Minimum drill diameter1.1091
Overall length7.88
Shank diameter (mm)31.75
Shank length3.2500
Shank typeStraight-Cylindrical
