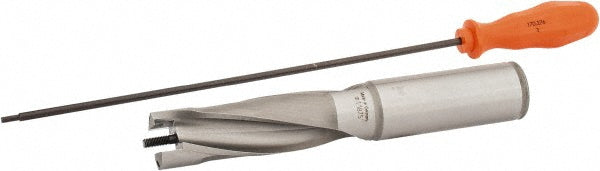

Indexable Drilling - Kennametal 2238566
MFR# 2238566Series KSEM
$741.03List $809.61
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238566 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM1188
Coolant hole diameter0.1969
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.7200
Insert seat size8
Maximum drill depth3.5600
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter1.2071
Minimum drill diameter1.1874
Overall length8.13
Shank diameter (mm)31.75
Shank length3.2500
Shank typeStraight-Cylindrical
