0.1875" 2-Flute Solid Carbide Single End Mill - Kennametal 2403000

Kennametal

0.1875" 2-Flute Solid Carbide Single End Mill - Kennametal 2403000

MFR# 2403000Series AADF

$46.12List $59.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

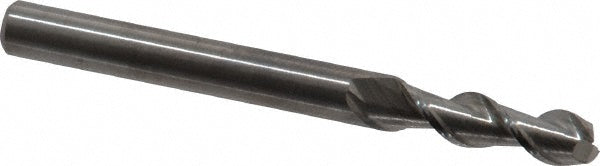

The Kennametal 2403000 is a 0.1875 2-flute Solid Carbide (K600) single end mill. 5/8 length of cut. Series AADF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/8
Material gradeK600
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00031 in
Variable helixNo
Variable indexNo
