Kennametal

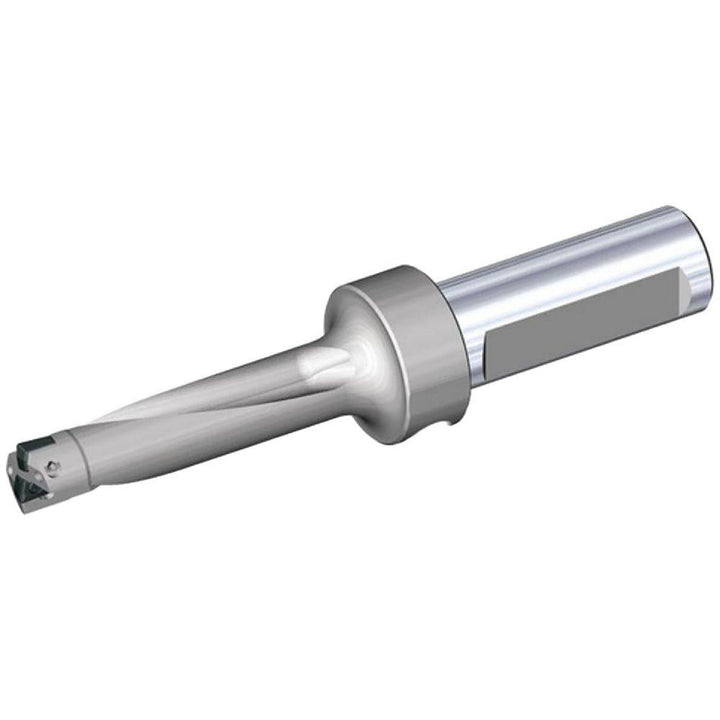

Indexable Drilling - Kennametal 3022347
MFR# 3022347Series DFR
$672.36List $734.58
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 3022347 indexable drilling. Series DFR.
Specifications
Body length4.0170
Body side coolant hole thread size in1/8-27
Compatible drill styleDFR
Compatible insert size code0302..
Compatible insert styleDFR
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length3.0000
Insert compatibilityDFR0302.
Insert lock screwM2.2-0.45x5.2T7
Insert size0.3429x0.2362x0.1134
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter0.7894
Number of drill inserts2
Overall length7.0170
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
