Kennametal

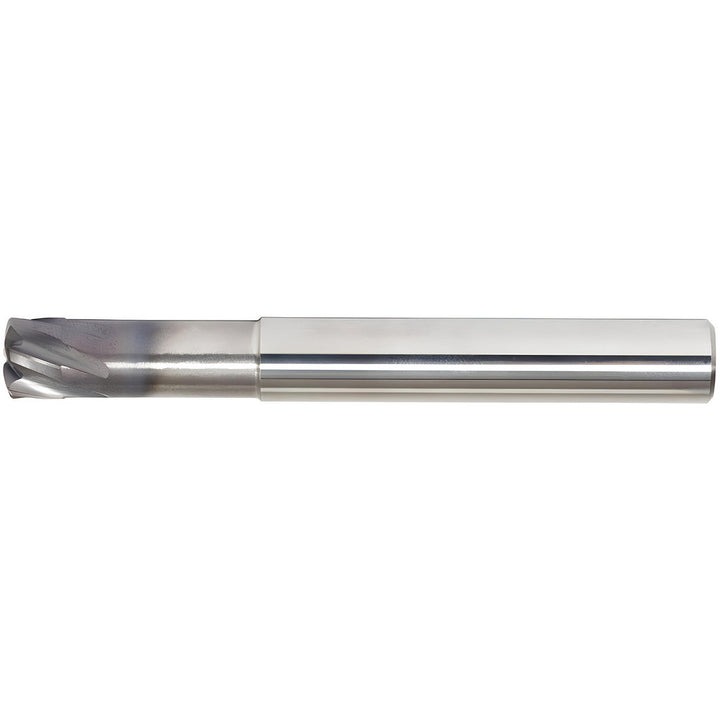

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3352775

MFR# 3352775Series KHDA

$755.95List $969.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3352775 is a 3/4 6-flute Solid Carbide (Ultra Fine Grain) corner radius end mill with a AlTiN finish for longer tool life. Suited for hard material. 5 overall length. Series KHDA.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0400

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A

Helix styleMedium

Length of cut0.0210

Length typeStub

Material applicationHard Material

Material gradeUltra Fine Grain

Material removal typeFinishing

Mill diameter in3/4

Number of flutes6

Overall length in5

PitchClose

Primary workpiece materialHard Material

Reach length in2-1/2

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
