Seco

3/4" 6-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03115980

MFR# 03115980Cat# SB638-0.750-D2-B.0-Z6Series SB638

$287.71List $369.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

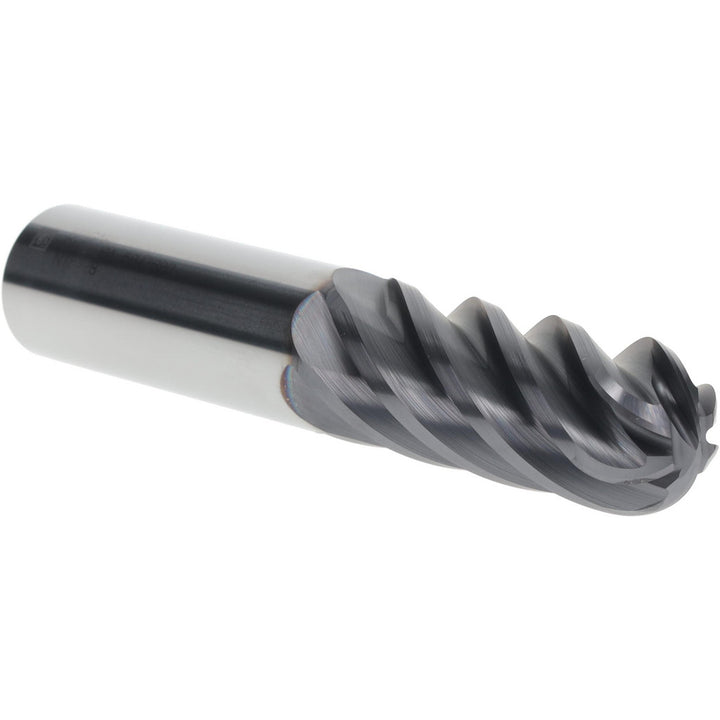

The Seco 03115980 is a 3/4 6-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-3/4 length of cut, 4 overall length. Series SB638.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in1-3/4

Length typeShort

Manufacturers catalog numberSB638-0.750-D2-B.0-Z6

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.3750

Number of flutes6

Overall length in4

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length1.7500

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
