Kennametal

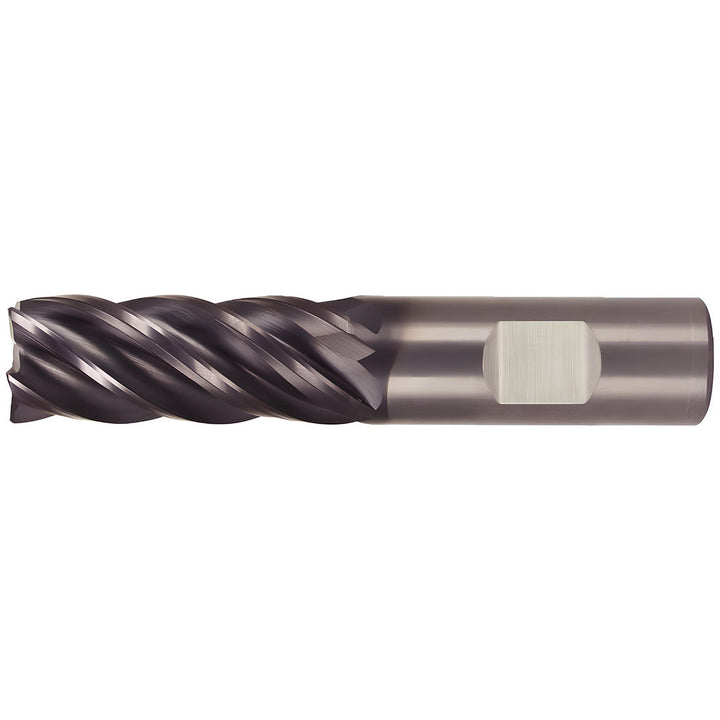

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3580792
MFR# 3580792Series UDDE
$199.12List $255.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 3580792 is a 1/2 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series UDDE.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/4
Length typeStandard
Material applicationSteel; Superalloys & Titanium
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes5
Overall length in3
PitchNormal
Primary workpiece materialSteel; Superalloys & Titanium
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
