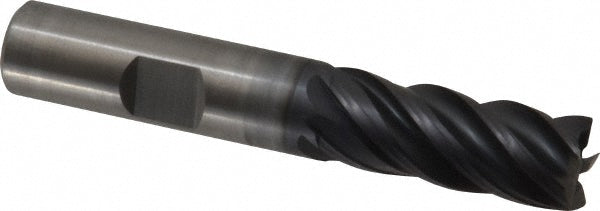

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4048728

Kennametal

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4048728

MFR# 4048728Series UCDE

$185.55List $237.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4048728 is a 1/2 5-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 1-1/4 length of cut, 3 overall length. Series UCDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeKCPM15
Mill diameter in1/2
Number of flutes5
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
