0.3150" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3637463

Kennametal

0.3150" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3637463

MFR# 3637463Series ABDE

$76.70List $98.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

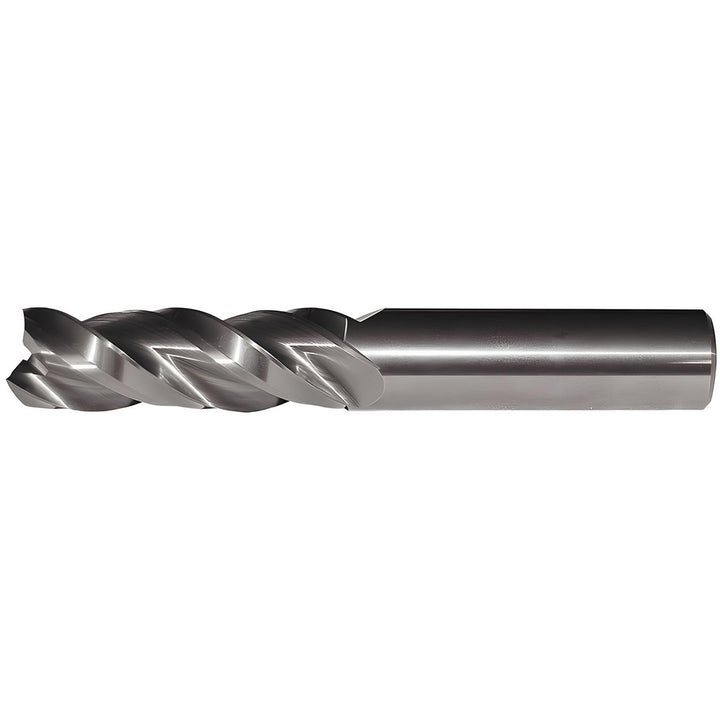

The Kennametal 3637463 is a 0.3150 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. Series ABDE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleHigh
Length of cut0.7874
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter0.3150
Mill diameter tolerance0.000000/-0.009000 in
Number of flutes3
Overall length (mm)63.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)8.00
Shank diameter tolerance0.0000/-0.0090 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
