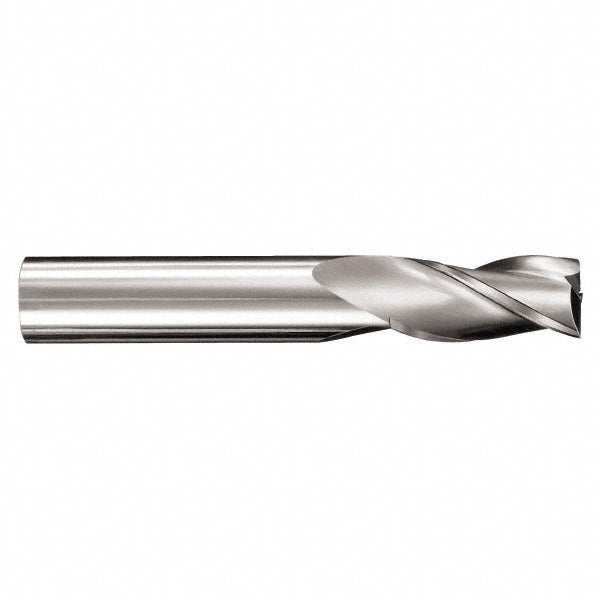

0.3150" 3-Flute Solid Carbide Square End Mill - SGS 40549

SGS

0.3150" 3-Flute Solid Carbide Square End Mill - SGS 40549

MFR# 40549Series 5M

$35.93List $45.27 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 40549 is a 0.3150 3-flute Solid Carbide (Micrograin) square end mill. 0.7874 length of cut. Series 5M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.7874
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter0.3150
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes3
Overall length (mm)63
Shank diameter0.315
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
