Kennametal

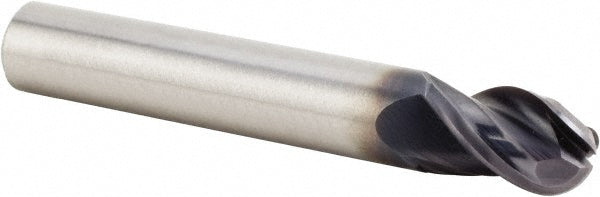

0.1969" 3-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4032307

Name: 0.1969" 3-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4032307
Brand: Kennametal
SKU: 4032307
Price: 56.33 USD
Availability: InStock

MFR# 4032307Cat# UEBE0500A3ASeries GOmill UEBE

$56.33List $70.99 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4032307 is a 0.1969 3-flute Solid Carbide (Fine Grain) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.3150 length of cut. Series GOmill UEBE.

Specifications

Additional informationEconomic Solid Carbide End Mill with Short Style Shanks, Saving Expensive Carbide. Not Recommended for Reconditioning. Extremely Stable Cutting Conditions Due to Short Design. Center Cutting for Plunging & Ramping Operations. Unequal Flute Spacing for Cha

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut0.3150

Length typeStandard

Manufacturers catalog numberUEBE0500A3A

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter0.1969

Mill diameter tolerance-0.020/-0.038 mm

Nose radius0.0984

Number of flutes3

Overall length (mm)38.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length (mm)8.00

Shank diameter (mm)6.00

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexYes
