0.3937" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046470

Kennametal

0.3937" 4-Flute Solid Carbide Corner Chamfer End Mill, AlTiN - Kennametal 4046470

MFR# 4046470Series F4BJ.C

$186.03List $238.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

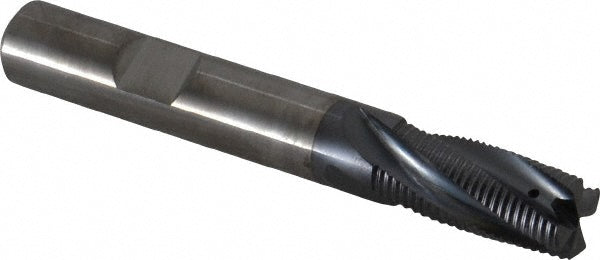

The Kennametal 4046470 is a 0.3937 4-flute Solid Carbide corner chamfer end mill with a AlTiN finish for longer tool life. Series F4BJ.C.

Specifications

CentercuttingYes
Chamfer width (mm)0.50
Coating finishAlTiN
End mill materialSolid Carbide
End typeCorner Chamfer
Extended reachNo
Length of cut0.8661
Maximum helix angle20
Mill diameter0.3937
Number of flutes4
PitchFine
Shank diameter (mm)10.00
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
