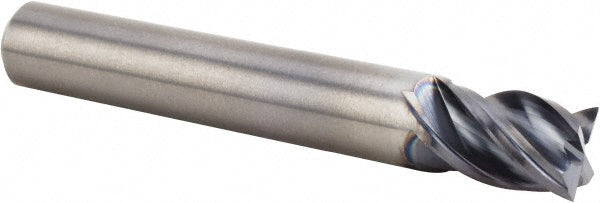

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4047757

Kennametal

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4047757

MFR# 4047757Series HARVI HPHV

$136.99List $172.64 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4047757 is a 3/8 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 7/8 length of cut, 3 overall length. Series HARVI HPHV.

Specifications

CentercuttingYes
ChipbreakerNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No
Coating finishAlTiN
Coolant throughNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in7/8
Length typeRegular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular
Material gradeKCPM15
Mill diameter in3/8
Number of flutes4
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Steel; Stainless Steel; Cast Iron; Hard Material; Steel; Stainless Steel; Cast Iron; Hard Material; Steel; Stainless Steel; Cast Iron; Hard Material; Steel; Stainless Steel; Cast Iron; Hard Material; Steel
Shank diameter in3/8
Shank typeStraight
Single or double endSingle; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single
Variable helixNo
Variable indexNo
