Kennametal

3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4048650

MFR# 4048650Series HPFSS

$424.30List $544.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

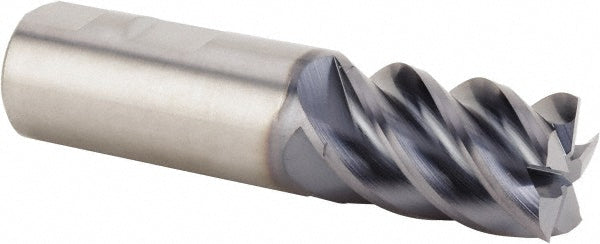

The Kennametal 4048650 is a 3/4 5-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 7/8 length of cut, 3 overall length. Series HPFSS.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in7/8

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeKCPM15

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes5

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
