3/4" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120986

GWS

3/4" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120986

MFR# 120986Series 1035

$217.76List $279.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingnACRo

Description

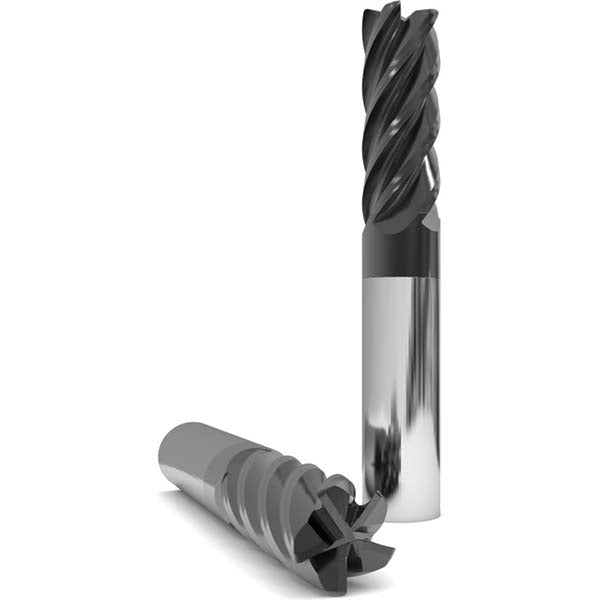

The GWS 120986 is a 3/4 5-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 7/8 length of cut, 3 overall length. Series 1035.

Specifications

Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeStandard
Material gradeSubmicron
Mill diameter in3/4
Number of flutes5
Overall length in3
Shank diameter in3/4
Shank typeSquare
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/4" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM5-1169 $290.69 Kennametal3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4048650 $424.30 M.A. Ford.3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17875022NA $462.59 Guhring3/4" 5-Flute Solid Carbide Corner Radius End Mill, nano-A - Guhring 9069860190540 $336.43
