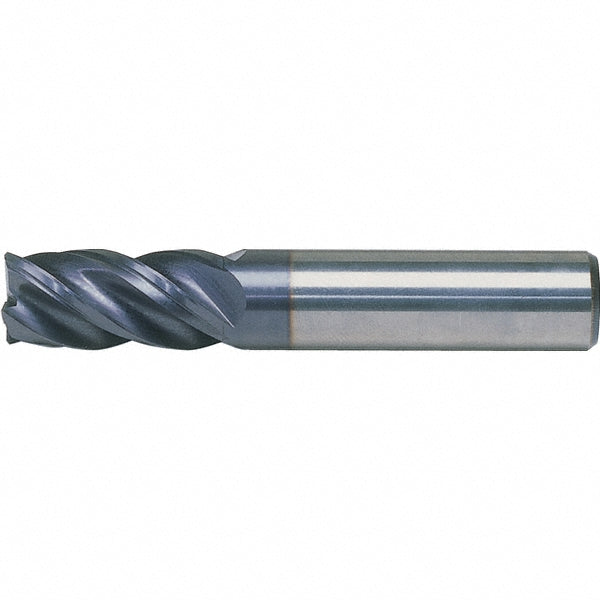

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4067262

MFR# 4067262Cat# HPHV625S4163R030Series HPHV

$383.10List $491.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4067262 is a 5/8 4-flute Solid Carbide (KCPM15) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, non-ferrous metal, hard material. 1-5/8 length of cut, 3-1/2 overall length. Series HPHV.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-5/8

Length typeStandard

Manufacturers catalog numberHPHV625S4163R030

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material

Reach length in1-5/8

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
