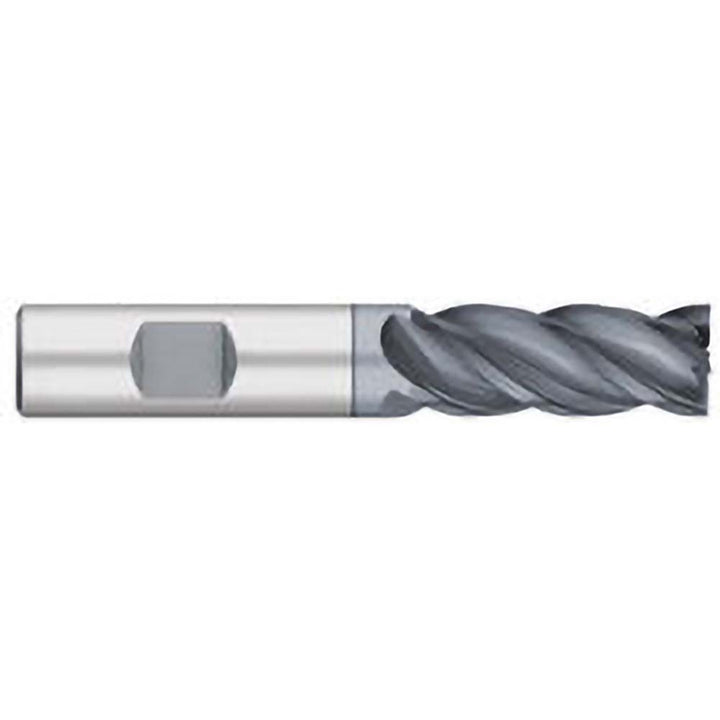

5/8" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC21869

Titan USA

5/8" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC21869

MFR# TC21869

$153.83List $197.29 Save 22%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC21869 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1-5/8 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexYes
