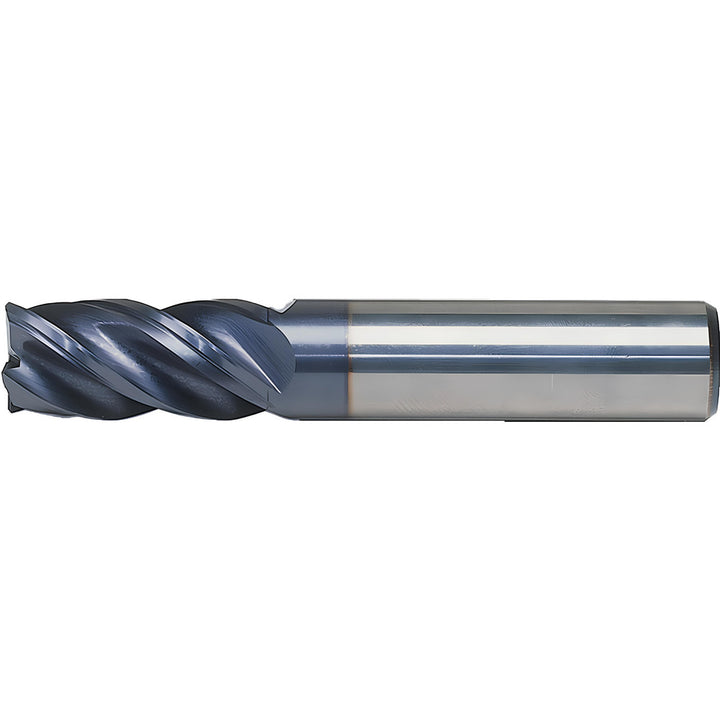

1" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4067319
MFR# 4067319Cat# HPHV1000S4225CHSeries HPHV
$857.36List $1,099.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4067319 is a 1 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 2-1/4 length of cut, 5 overall length. Series HPHV.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleMedium
Length of cut in2-1/4
Length typeRegular
Manufacturers catalog numberHPHV1000S4225CH
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes4
Overall length in5
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in2-1/4
Shank diameter in1
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
