Kennametal

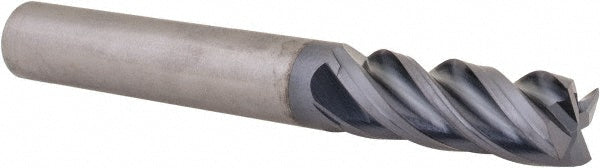

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4071884

MFR# 4071884Series HARVI HPHV

$125.01List $160.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4071884 is a 3/8 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1 length of cut, 3 overall length. Series HARVI HPHV.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1

Length typeRegular

Material gradeKCPM15

Mill diameter in3/8

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length in1

Shank diameter in3/8

Shank diameter tolerance+0.00000 to -0.00035 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
