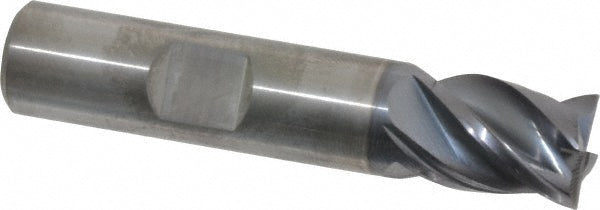

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4071900

Kennametal

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 4071900

MFR# 4071900Series HPHV

$153.63List $197.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4071900 is a 1/2 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 5/8 length of cut, 2-1/2 overall length. Series HPHV.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeKCPM15
Mill diameter in1/2
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
