Kennametal

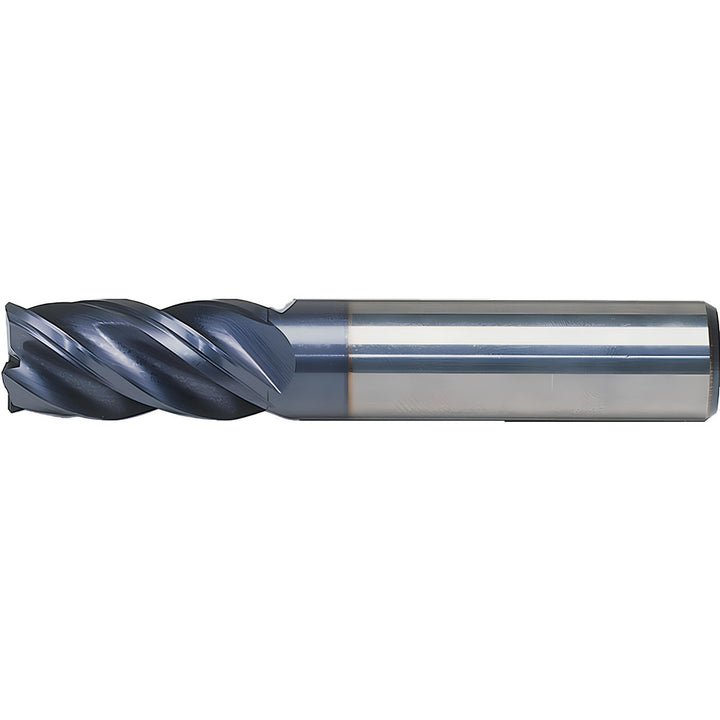

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4071920

MFR# 4071920Cat# HPHV500S4150CHSeries HPHV

$223.36List $286.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4071920 is a 1/2 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-1/2 length of cut, 4 overall length. Series HPHV.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in1-1/2

Length typeRegular

Manufacturers catalog numberHPHV500S4150CH

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length in1-1/2

Shank diameter in1/2

Shank diameter tolerance+0.00000 to -0.00035 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
