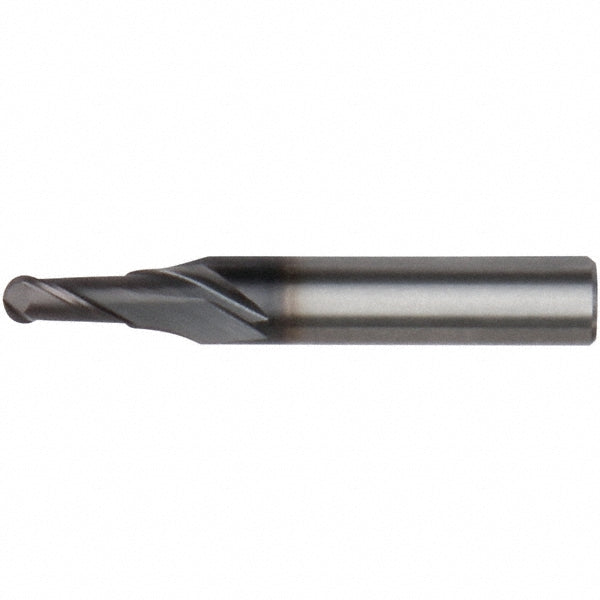

0.0787" 2-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4152204

MFR# 4152204Cat# UEBC0200A2ASeries GOmill UEBC

$40.27List $51.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4152204 is a 0.0787 2-flute Solid Carbide (Fine Grain) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.1575 length of cut. Series GOmill UEBC.

Specifications

Additional informationEconomic Solid Carbide End Mill with Short Style Shanks, Saving Expensive Carbide. Not Recommended for Reconditioning. Extremely Stable Cutting Conditions Due to Short Design. Center Cutting for Plunging & Ramping Operations.

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut0.1575

Length typeStandard

Manufacturers catalog numberUEBC0200A2A

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter0.0787

Mill diameter tolerance-0.014/-0.028 mm

Nose radius (mm)1.00

Number of flutes2

Overall length (mm)38.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length (mm)4.00

Shank diameter (mm)6.00

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
