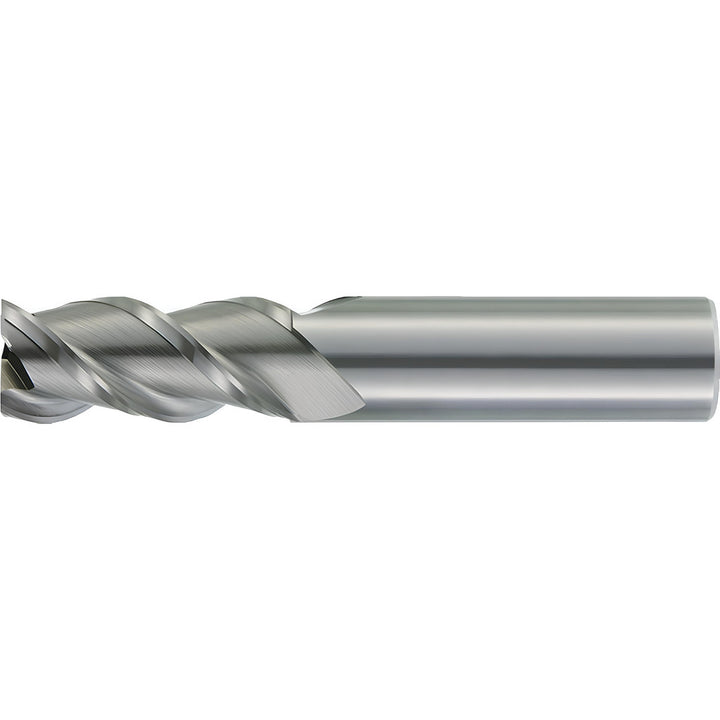

5/16" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 5051946

MFR# 5051946Cat# 4K1308073BSeries AADE

$119.63List $153.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 5051946 is a 5/16 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/4 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; ER Single Angle Standard Collets; ER Single Angle Standard Collets; TT-SS

Helix styleHigh

Length of cut in1-1/4

Length typeLong

Manufacturers catalog number4K1308073B

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in5/16

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in3-1/4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
