Kennametal

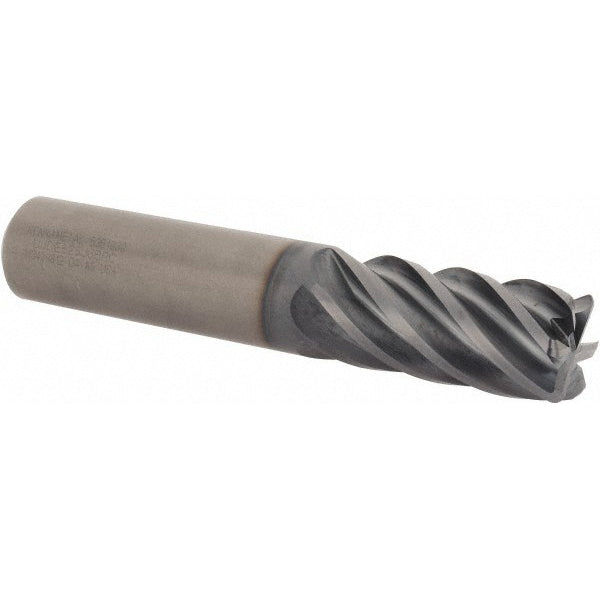

5/8" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5101798

MFR# 5101798Series UJDE

$428.47List $549.54 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5101798 is a 5/8 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1 length of cut, 3-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores

Helix styleHigh

Length of cut in1

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in5/8

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes6

Overall length in3-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
