Kennametal

1/4" 6-Flute Ceramic Corner Radius End Mill, SiAlON - Kennametal 5352360

MFR# 5352360Series EADE

$174.61List $206.03 Save 15%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialCeramic

CoatingSiAlON

Description

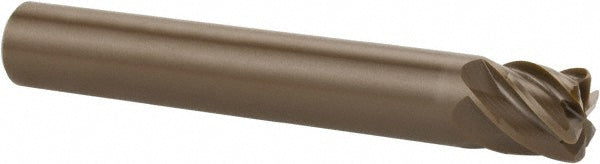

The Kennametal 5352360 is a 1/4 6-flute Ceramic corner radius end mill with a SiAlON finish for longer tool life. Suited for superalloys & titanium. 3/16 length of cut, 2 overall length. Series EADE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishSiAlON

Coolant throughNo

Corner radius0.0312

Cutting directionRight Hand

End mill materialCeramic

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC-CV Form AD; ER Single Angle Standard Collets

Helix styleHigh

Length of cut in3/16

Length typeStub

Material applicationSuperalloys & Titanium

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance-0.007900/-0.001500 in

Number of flutes6

Overall length in2

PitchClose

Primary workpiece materialSuperalloys & Titanium

Shank diameter in1/4

Shank diameter tolerance+0.00000/-0.00031 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
