Kennametal

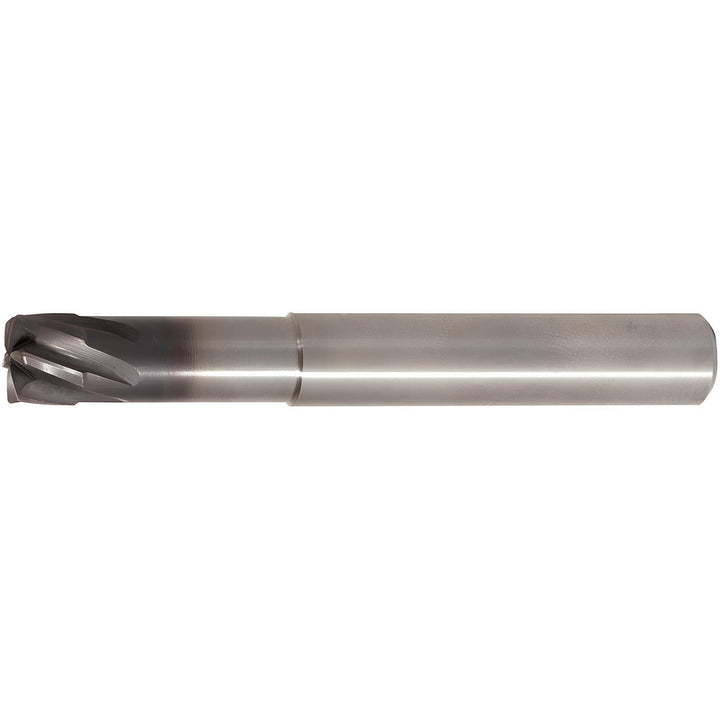

1/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3352573

MFR# 3352573Series KMDA

$228.97List $293.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3352573 is a 1/4 6-flute Solid Carbide (Ultra Fine Grain) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, hard material. 2-1/2 overall length. Series KMDA.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0160

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-CV Form AD

Helix styleMedium

Length of cut0.0130

Length typeStub

Material applicationSteel; Hard Material

Material gradeUltra Fine Grain

Material removal typeFinishing

Mill diameter in1/4

Neck diameter0.2110

Number of flutes6

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Hard Material

Reach length in3/4

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
