Kennametal

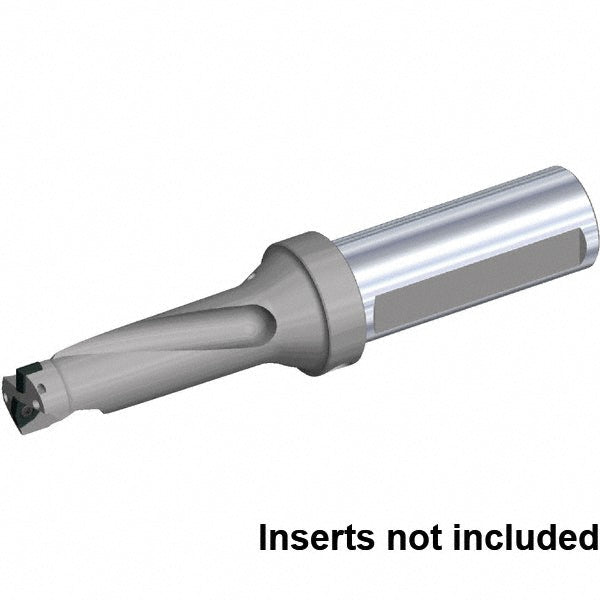

Indexable Drilling - Kennametal 5689649
MFR# 5689649Series DFSP
$585.89List $640.11
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5689649 indexable drilling. Series DFSP.
Specifications
Body length2.9080
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code2020..; 0502..
Compatible insert styleDFTX; SPG
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/8-27 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length1.9680
Insert compatibilityDFTX202.; SPGX0502.
Insert lock screwM2-0.4x4.5T6
Insert size0.1320x0.0965; 0.2188x0.0940
Maximum drill depth in1-31/32
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.6954
Number of drill inserts2
Overall length4.9080
Shank diameter in3/4
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
