Kennametal

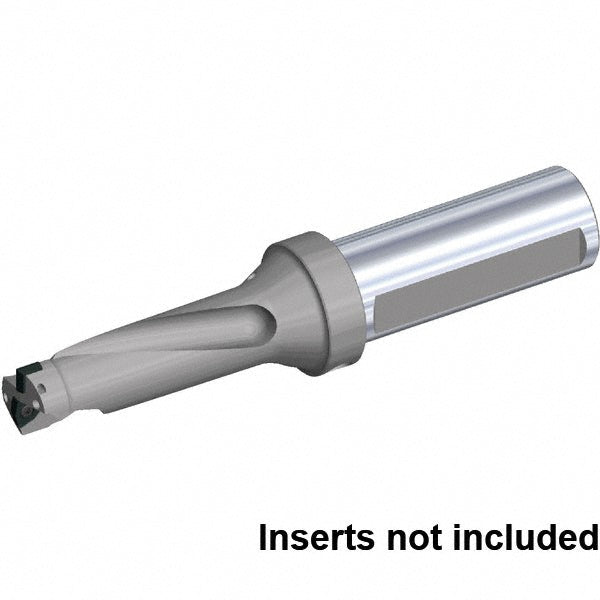

Indexable Drilling - Kennametal 5689673
MFR# 5689673Series DFSP
$604.29List $660.21
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5689673 indexable drilling. Series DFSP.
Specifications
Body length3.2080
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code0303..; 0603..
Compatible insert styleDFT; SPGX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length2.2500
Insert compatibilityDFT0303.; SPGX0603.
Insert lock screwM2.2-0.45x6.3T7
Insert size0.1560x0.1160; 0.2500x0.1252
Maximum drill depth in2-1/4
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.7894
Number of drill inserts2
Overall length6.2080
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
