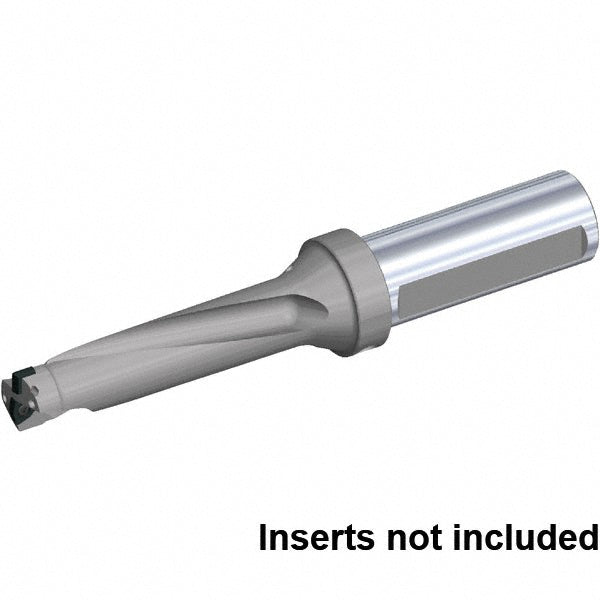

Indexable Drilling - Kennametal 5692216
MFR# 5692216Series DFSP
$821.96List $898.02
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5692216 indexable drilling. Series DFSP.
Specifications
Body length10.0000
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code0905..; 15T5
Compatible insert styleDFT; SPPX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length8.0000
Insert compatibilityDFT0905.; SPPX15T5.
Insert lock screwM4.5-0.75x10.2T15
Insert size0.3910x0.2070; 0.6250x0.2340
Maximum drill depth in8
Maximum drill depth range7.0000 to 10.0000
Maximum drill diameter2.0390
Number of drill inserts2
Overall length in14
Shank diameter in2
Shank end coolant hole thread size in1/4-18
Shank length4.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
