Kennametal

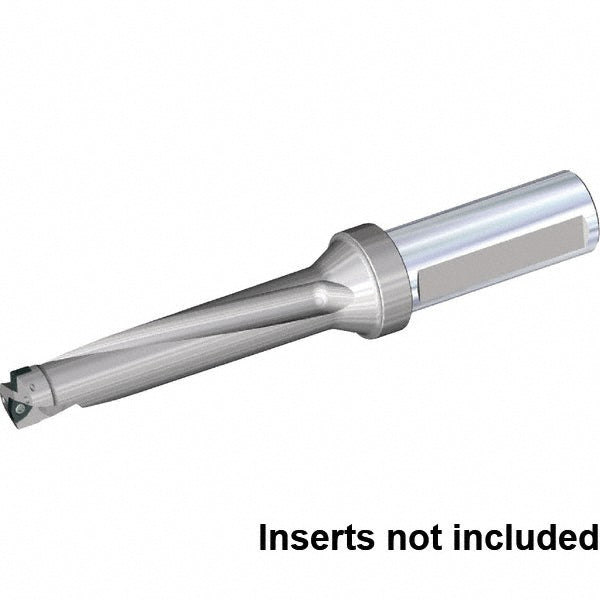

Indexable Drilling - Kennametal 5692355
MFR# 5692355Series DFSP
$696.17List $760.59
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5692355 indexable drilling. Series DFSP.
Specifications
Body length6.2500
Body side coolant hole thread size in1/8-27
Compatible drill styleDFSP
Compatible insert size code05T3..; 0703..
Compatible insert styleDFT; SPGX
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length5.0000
Insert compatibilityDFT05T3.; SPGX0703.
Insert lock screwM3-0.5x7.2T8; M2.5-0.45x5.9T8
Insert size0.2080x0.1480; 0.3048x0.1250
Maximum drill depth in5
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter in1
Number of drill inserts2
Overall length in9-1/4
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
