Kennametal

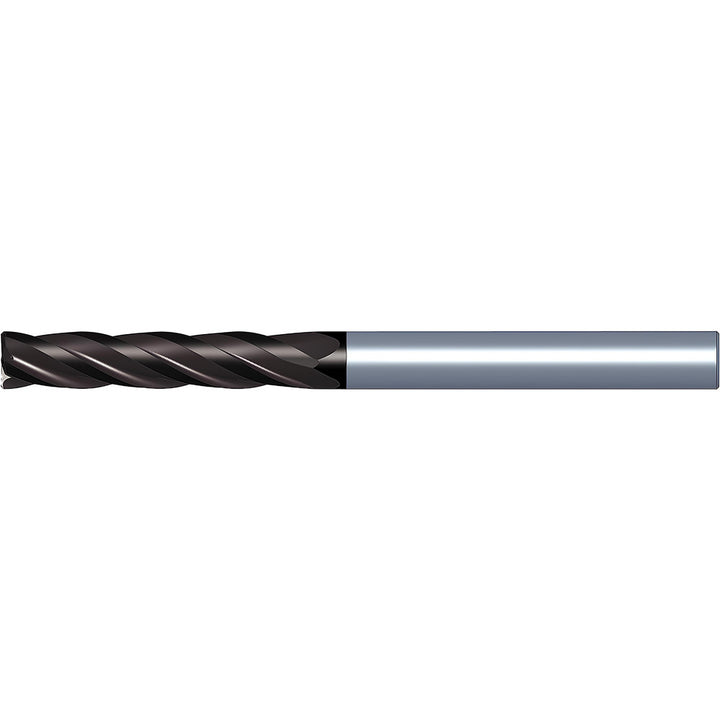

7/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824413

MFR# 5824413Cat# 4CH0875IR150ASeries 4CH

$431.06List $552.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/8

Flutes4

MaterialSolid Carbide

CoatingTiN/TiAlN

Description

The Kennametal 5824413 is a 7/8 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN/TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series 4CH.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishTiN/TiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in1-1/2

Length typeRegular

Manufacturers catalog number4CH0875IR150A

Material gradeKC633M

Material removal typeRoughing & Finishing

Mill diameter in7/8

Mill diameter tolerance-0.040 to -0.073 mm

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in1-1/2

Shank diameter in7/8

Shank diameter tolerance+0.000 to -0.013 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
