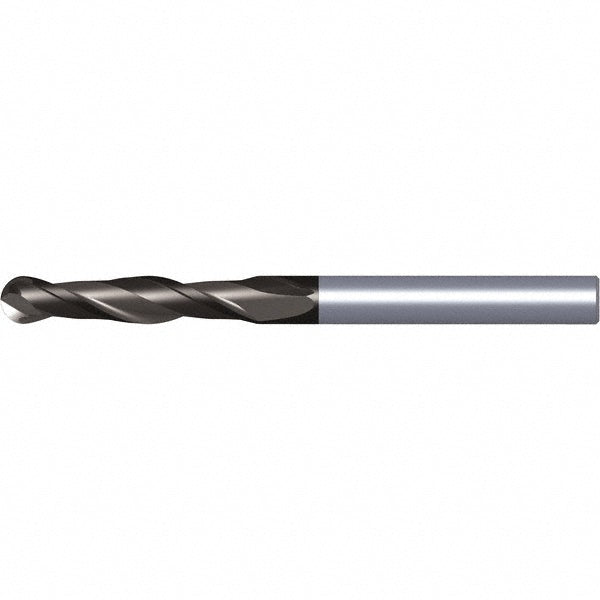

3/8" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5876758

Kennametal

3/8" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5876758

MFR# 5876758Cat# 2BN0375IL112ASeries GOmill 2BN

$67.88List $85.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5876758 is a 3/8 2-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/8 length of cut, 3 overall length. Series GOmill 2BN.

Specifications

Additional informationSolid Carbide End Mill with Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability for Long Tool Life & High Surface Quality. Eccentric Relief Eases Regrinding & Reduces Reconditioning Cost. Center Cutting for Plunging & Ramping O
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1-1/8
Length typeStandard
Manufacturers catalog number2BN0375IL112A
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1875
Number of flutes2
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length1.1250
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
