Kennametal

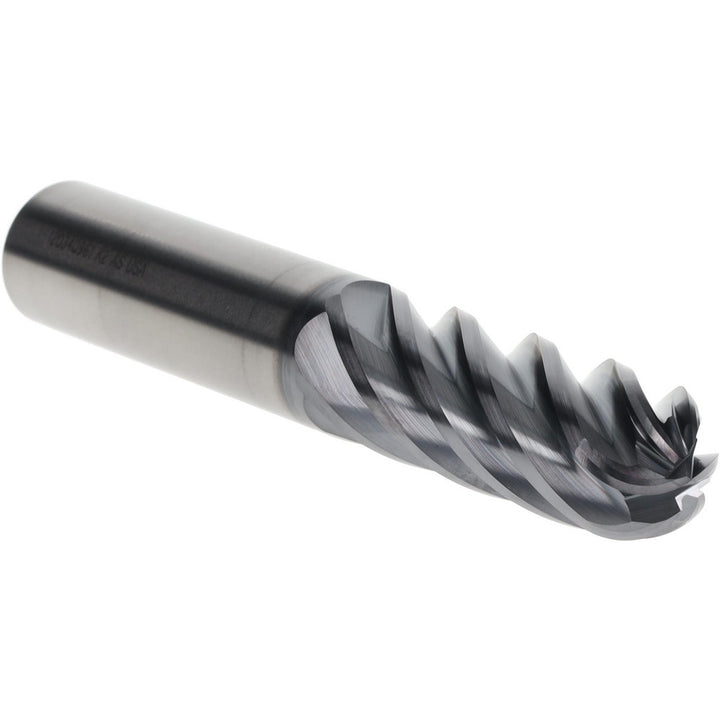

3/4" 6-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6113261

MFR# 6113261Cat# UJBE0750J6ZBSeries HARVI III UJBE

$672.07List $861.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6113261 is a 3/4 6-flute Solid Carbide (KCSM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 2 length of cut, 4-1/2 overall length. Series HARVI III UJBE.

Specifications

Additional informationVersatile Solid Carbide End Mill for Stainless Steel, & High-Temperature Alloys. Harvi III Aero Solid Carbide End Mills Cover a Variety of Operations. Harvi III Aero Solid Carbide End Mills Feature Unequal Flute Spacing for Chatter-Free Machining At Hig

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in2

Length typeStandard

Manufacturers catalog numberUJBE0750J6ZB

Material gradeKCSM15

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.3750

Number of flutes6

Overall length in4-1/2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials

Reach length2.0000

Shank diameter in3/4

Shank diameter tolerance+0.0000/-0.0051 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
