5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6413145

Kennametal

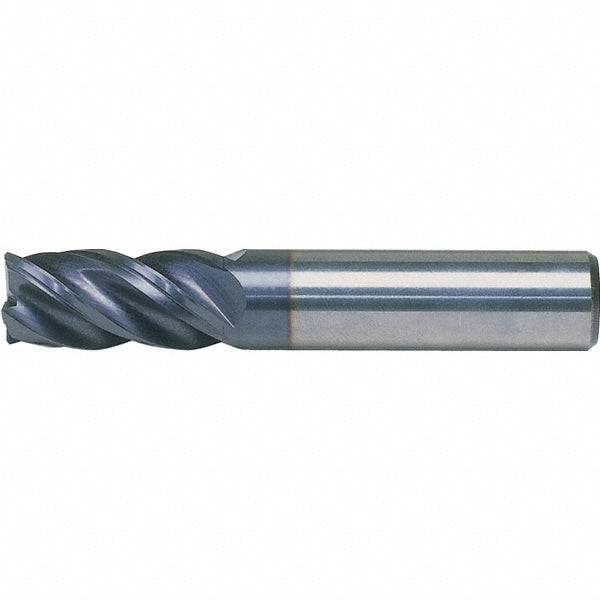

5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6413145

MFR# 6413145Series HPHV

$419.29List $537.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6413145 is a 5/8 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hardened materials. 2-1/4 length of cut, 5 overall length. Series HPHV.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in2-1/4
Material gradeKCPM15
Mill diameter in5/8
Number of flutes4
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter in5/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 464-625011 $193.84 Widia5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879555 $186.48 Kennametal5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6086512 $250.45 Kennametal5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676945 $320.57
