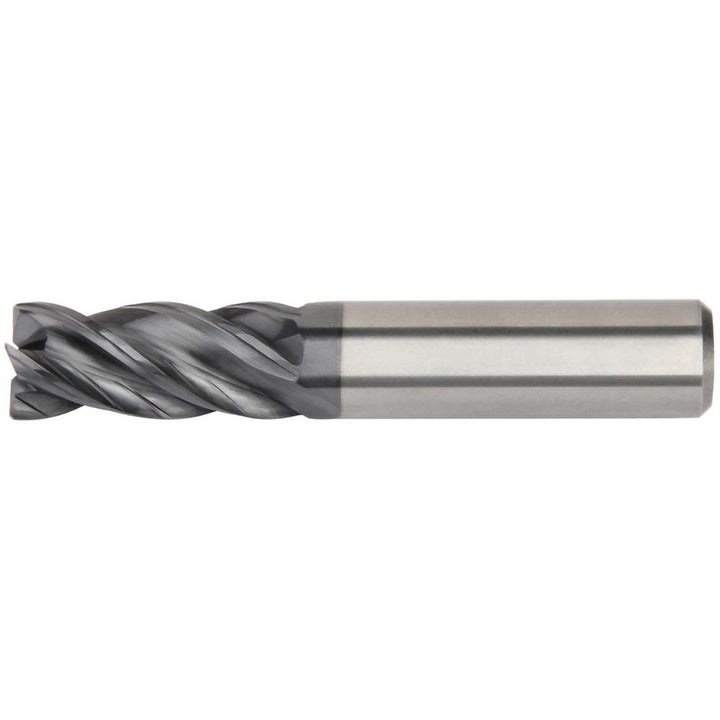

9/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676920

MFR# 6676920Series H1TE

$77.26List $99.09 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/32

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6676920 is a 9/32 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 5/8 length of cut, 2-1/2 overall length. Series H1TE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36-39

Length of cut in5/8

Length typeRegular

Material gradeKCPM15

Mill diameter in9/32

Neck length1.4370

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter in5/16

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
