9/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36418

SGS

9/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36418

MFR# 36418Series Z1

$48.44List $62.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

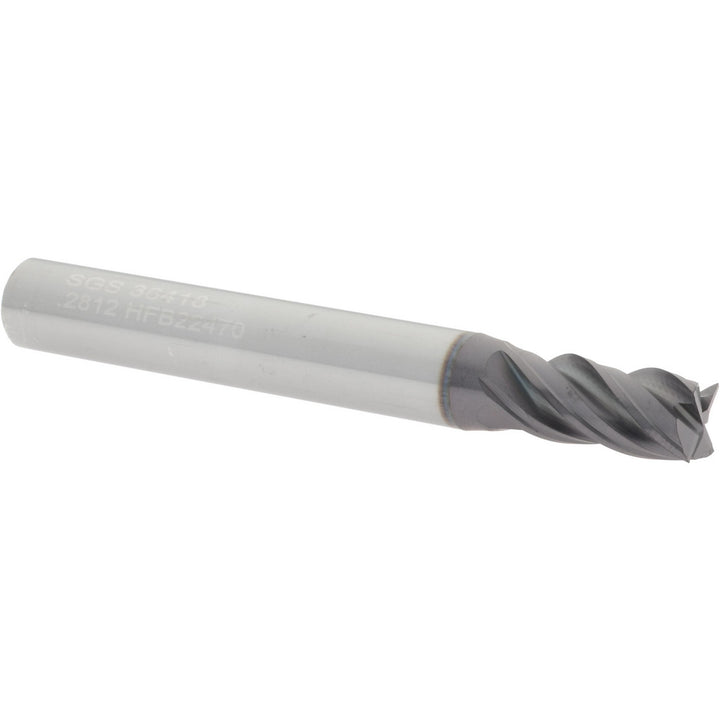

The SGS 36418 is a 9/32 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in9/32
Mill diameter tolerance+0.0000/-0.0016 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel9/32" 4-Flute High Speed Steel Square End Mill - Hertel E103101801 $16.08 Kennametal9/32" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676920 $77.26 Kennametal9/32" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6676995 $85.01 OSG9/32" 4-Flute Cobalt Square End Mill - OSG 5429300 $41.97
