Kennametal

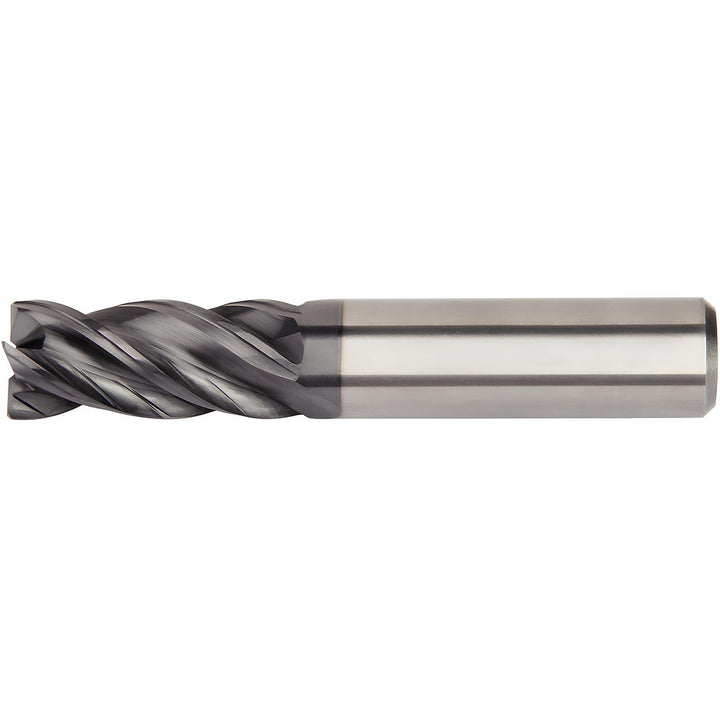

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6676996

MFR# 6676996Cat# H1TE4CH0313S050HASeries H1TE

$75.18List $96.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6676996 is a 5/16 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 2 overall length. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0150

Chamfer width0.0150

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleVariable

Length of cut in1/2

Length typeRegular

Manufacturers catalog numberH1TE4CH0313S050HA

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in5/16

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1/2

Shank diameter in5/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
