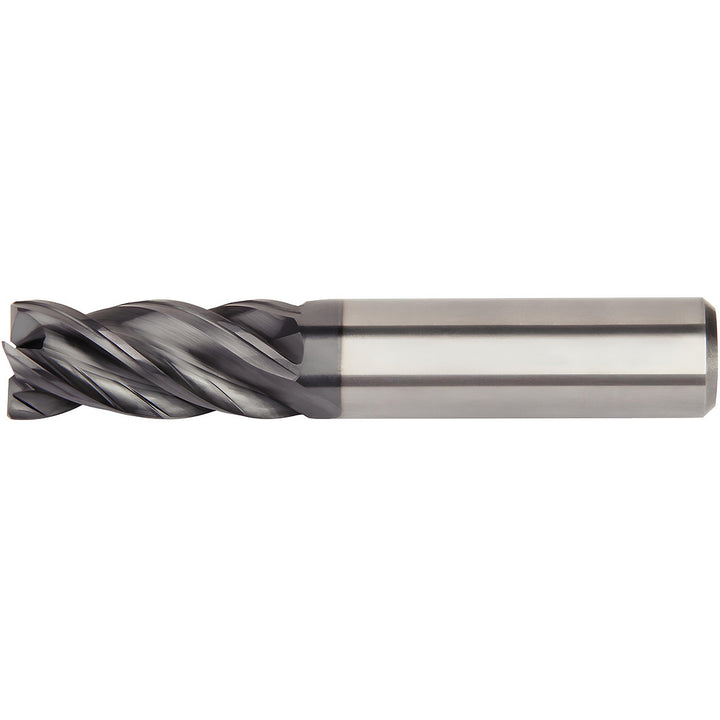

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6677004

Kennametal

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6677004

MFR# 6677004Cat# H1TE4CH0500L150HASeries H1TE

$231.39List $291.61 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6677004 is a 1/2 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleVariable
Length of cut in1-1/2
Length typeRegular
Manufacturers catalog numberH1TE4CH0500L150HA
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in1/2
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in1-1/2
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
