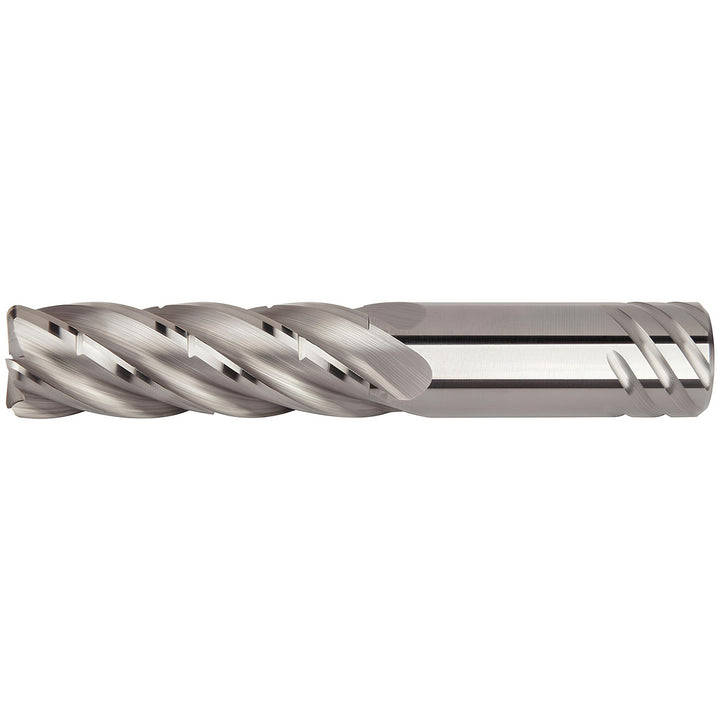

5/8" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754960

MFR# 6754960Series KOR5

$263.15List $337.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 6754960 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-7/8 length of cut, 4 overall length. Series KOR5.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughYes

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC-HSK Form A; HC-HSK Form A; HC-CV Form AD; ER Single Angle Standard Collets

Helix styleMedium

Length of cut in1-7/8

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes5

Overall length in4

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank typeSafe-Lock

Single or double endSingle

Variable helixNo

Variable indexNo
