Iscar

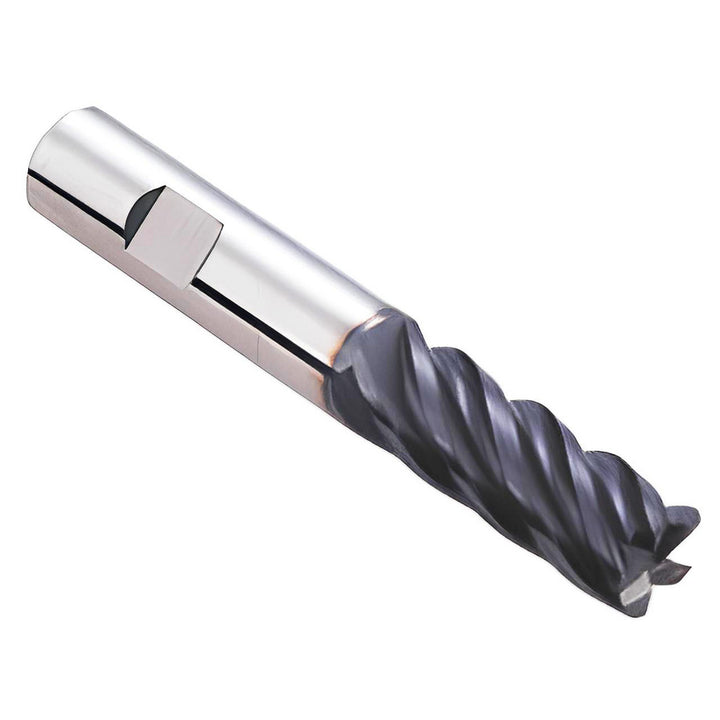

5/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622532

MFR# 5622532Cat# ECI-E5L625-1.56W62CFSeries ECI-E5-CF

$290.39List $371.90 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5622532 is a 5/8 5-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 4 overall length. Series ECI-E5-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation

CentercuttingNo

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut1.5600

Length typeMedium

Manufacturers catalog numberECI-E5L625-1.56W62CF

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes5

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length1.5600

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
