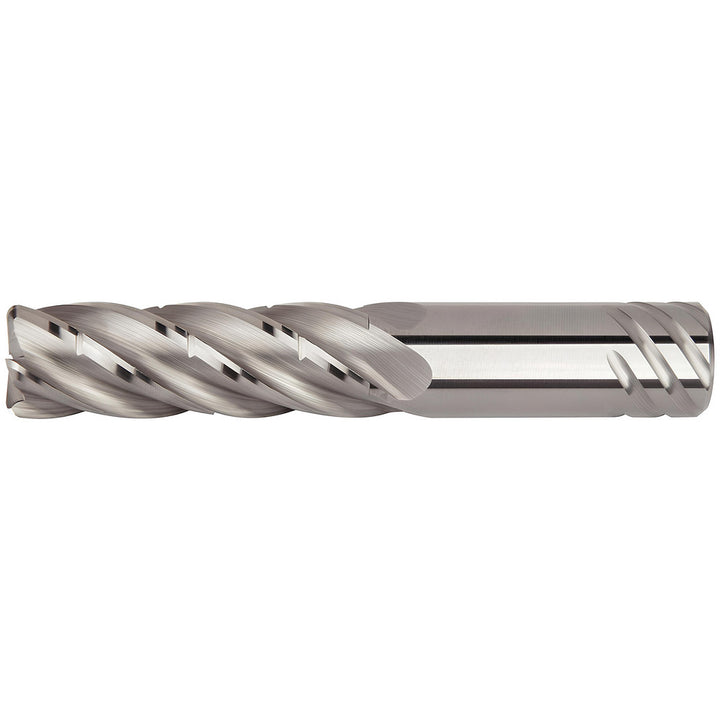

0.4724" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754977

Kennametal

0.4724" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754977

MFR# 6754977Series KOR5

$224.21List $287.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Kennametal 6754977 is a 0.4724 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. Series KOR5.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughYes
Corner radius (mm)0.20
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleMedium
Length of cut1.5000
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.4724
Number of flutes5
Overall length (mm)87.00
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)12.00
Shank typeSafe-Lock
Single or double endSingle
Variable helixNo
Variable indexNo
