SGS

0.4724" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 42617

MFR# 42617Series 55ML

$125.38List $160.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

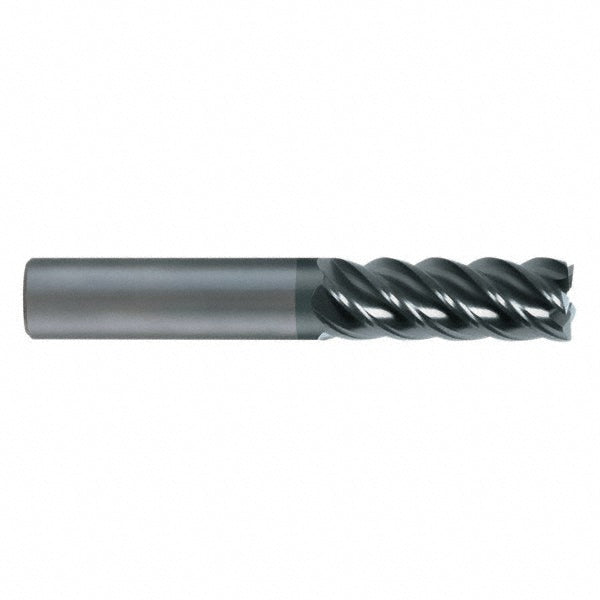

The SGS 42617 is a 0.4724 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1.9685 length of cut. Series 55ML.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut1.9685

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeMicrograin

Mill diameter0.4724

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes5

Overall length (mm)100

Shank diameter0.4724

Shank diameter tolerance+0.000/-0.011 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
