Kennametal

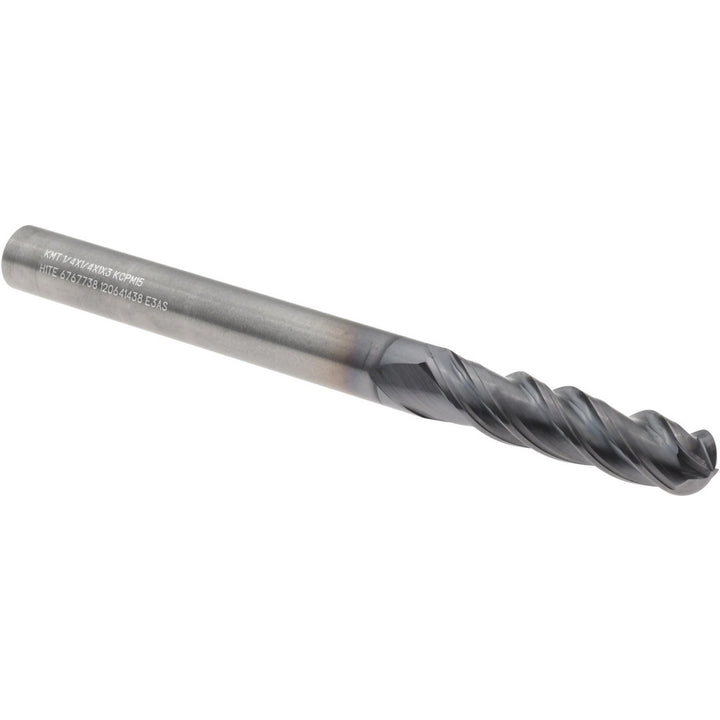

1/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767738

MFR# 6767738Cat# H1TE4BN0250L100HASeries H1TEBN..N-L

$68.01List $87.23 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6767738 is a 1/4 4-flute Solid Carbide (KCPM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1 length of cut, 3 overall length. Series H1TEBN..N-L.

Specifications

Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi I Te Solid Carbide End M

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut in1

Length typeLong

Manufacturers catalog numberH1TE4BN0250L100HA

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length1.0000

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
