Kennametal

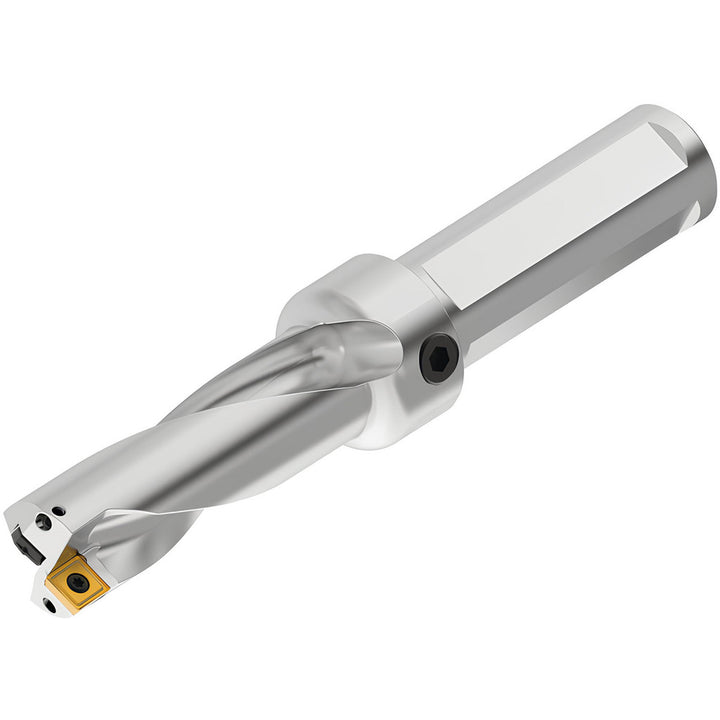

Indexable Drilling - Kennametal 7030489
MFR# 7030489Series DFPR
$582.36List $636.25
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 7030489 indexable drilling. Series DFPR.
Specifications
Body length4.0630
Body side coolant hole thread size in1/8-27
Compatible drill styleDFPR
Compatible insert size code090305; 100305
Compatible insert styleDFPR
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.0000
Insert compatibilityDFPR090305__O; DFPR100305__I
Insert lock screwM3-0.5x8T9
Insert size0.3700x0.1180; 0.3900x0.1180
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.0390
Number of drill inserts2
Overall length7.0630
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
