Kennametal

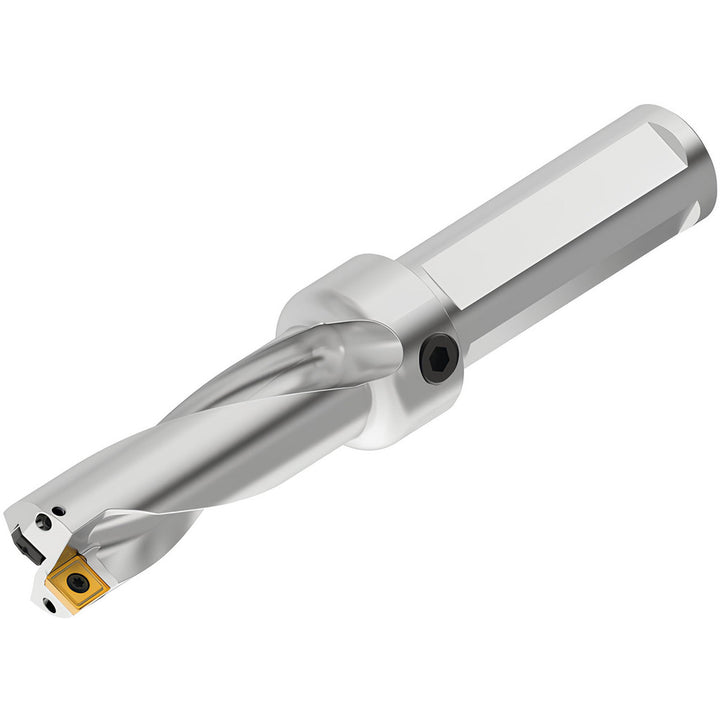

Indexable Drilling - Kennametal 7030541
MFR# 7030541Series DFPR
$656.86List $717.64
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 7030541 indexable drilling. Series DFPR.
Specifications
Body length4.8980
Body side coolant hole thread size in1/8-27
Compatible drill styleDFPR
Compatible insert size code110406; 120405
Compatible insert styleDFPR
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.7500
Insert compatibilityDFPR110406__O; DFPR120405__I
Insert lock screwM4-0.7x8.4T15
Insert size0.4450x0.1420; 0.4690x0.1420
Maximum drill depth in3-3/4
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.2890
Number of drill inserts2
Overall length8.6480
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
