Kennametal

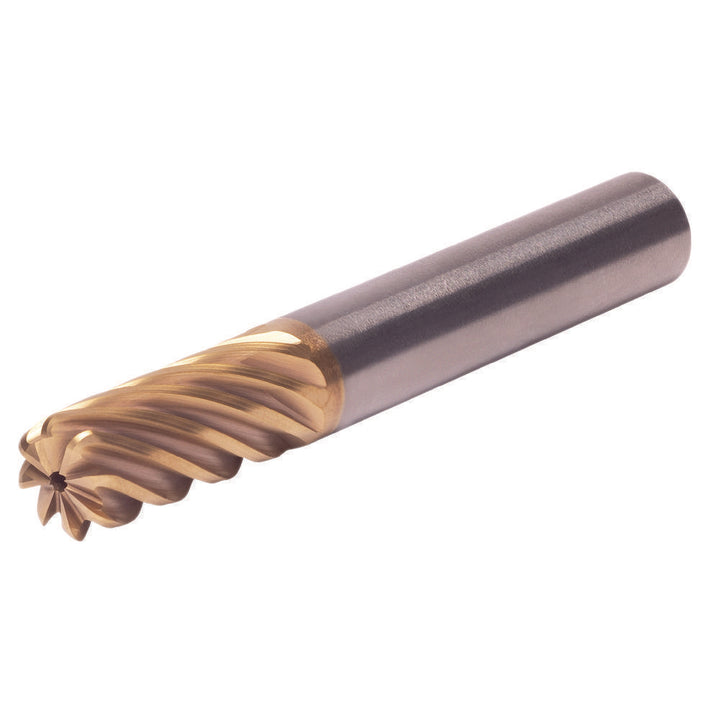

3/8" 8-Flute Solid Carbide Corner Radius End Mill, AlCrN - Kennametal 7102409

MFR# 7102409Series HARVI IV

$111.53List $143.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes8

MaterialSolid Carbide

CoatingAlCrN

Description

The Kennametal 7102409 is a 3/8 8-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. 1/2 length of cut, 2-1/2 overall length. Series HARVI IV.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishAlCrN

Coolant throughYes

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1/2

Mill diameter in3/8

Number of flutes8

Overall length in2-1/2

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
