Kyocera

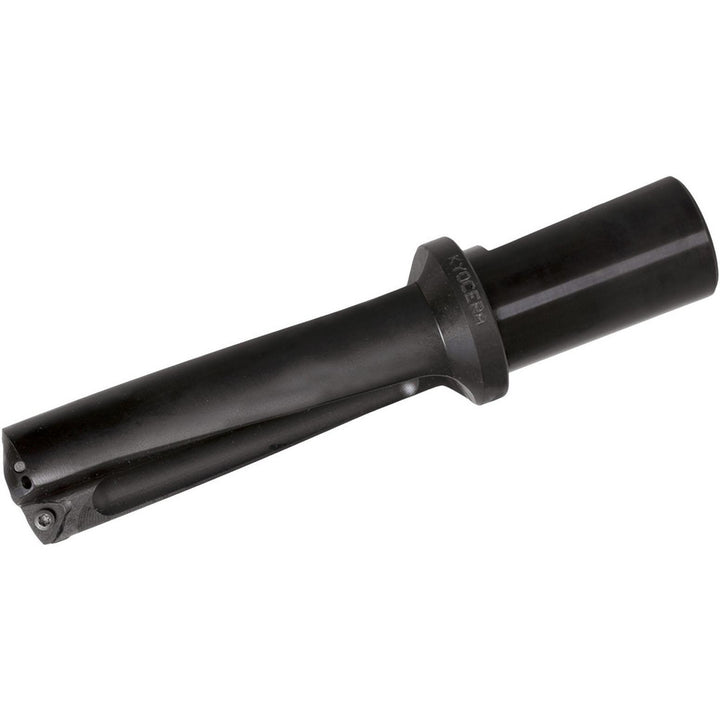

Indexable Drilling - Kyocera OTM86155
MFR# OTM86155Series Holeshot
$354.05List $398.62
Save 11%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera OTM86155 indexable drilling. Series Holeshot.
Specifications
Body length2.5900
Compatible drill styleDR
Compatible insert styleWCMXS
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Insert compatibilityWCMX S30204-M1A
Insert size0.0940
Maximum drill depth1.8700
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in5/8
Number of drill inserts2
Shank diameter in3/4
Shank length2.0300
Shank typeWhistle Notch
Tool materialSteel
