M.A. Ford.

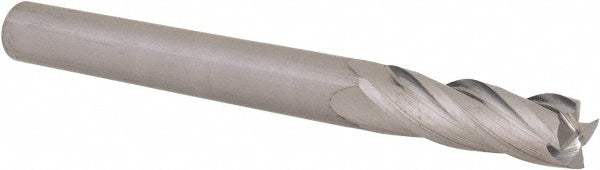

0.2362" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11123620

MFR# 11123620Series 111

$32.95List $42.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 11123620 is a 0.2362 4-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 0.7874 length of cut. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.7874

Length of cut range0.7000 - 0.8000

Length typeStandard

Material gradeMicrograin

Mill diameter0.2362

Mill diameter tolerance+0.000 to -0.048 mm

Number of flutes4

Overall length (mm)64.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter0.2362

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
