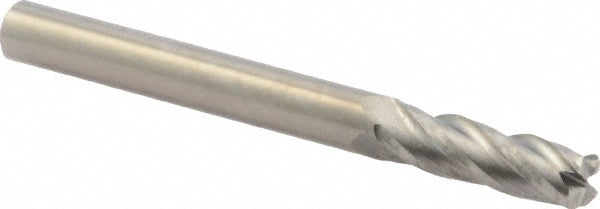

0.2362" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 11123623

MFR# 11123623Series 111

$43.55List $55.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 11123623 is a 0.2362 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0390

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut0.7874

Length typeRegular

Manufacturers catalog number11123623

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter tolerance+0.000/-0.048 mm

Number of flutes4

Overall length (mm)64.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length (mm)20.00

Shank diameter (mm)6.00

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
